Low-power WIFI doorbell

Detailed parameters: Sensor size 1/4 CMOS, Resolution 1280*720, Lens angle 166 degrees (diagonal), Infrared LEDs 6pcs 850nm, WIFI support 802.11b/g/n, Audio Two-way talk with echo cancellation, Recording SD card recording, on-demand playback, 8G/16G/32G storage, Battery 2 x 18650 batteries, Motion detection PIR infrared detection, Wake-up methods Button wake-up, PIR detection wake-up, Mobile phone active wake-up, Push notification Instant push within 1 second, Power consumption Standby current 250uA, Working current 170mA, Solution: HiSilicon low-power WIFI doorbell

Category:

Keywords:

  • Product Description
  •

    Detailed parameters:

    Sensor Size Dimensions

    1/4 CMOS

    Resolution

    1280*720

    Lens Angle

    Diagonal 166 Degrees

    Infrared Lights

    6 Number 850mm

    WIFI

    Support 802.11 b/g/n

    Audio

    Two-way intercom, Built-in Built-in Sound Noise Cancellation

    Recording

    SD Card recording, on-demand

    Storage

    8G / 16G / 32G

    Battery

    2 Life 18650 Battery

    Motion Detection

    PIR Infrared Detection

    Wake-up Method

    Button wake-up, PIR Detection wake-up, Mobile Phone active wake-up

    Push

    Instant Push 1S Internal

    Power Consumption

    Standby Current  250uA ,Working Current 170mA

    Solution:

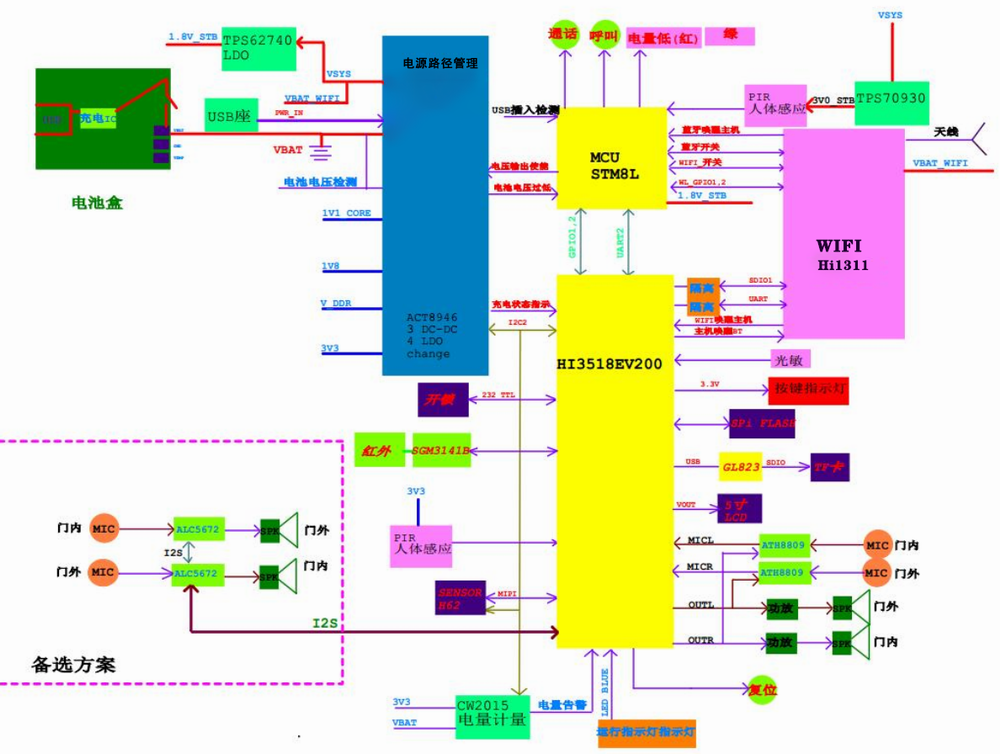

    Hisilicon low-power WIFI doorbell solution ( Hi3518EV200+Hi1311+MCU+LiteOS)



    Application: WIFI doorbell; WIFI Video door lock; WIFI Peephole;



    Contents:

    1. Independent hardware R&D, providing schematics and customized PCB services.

    2. Independent firmware R&D, providing secondary development and source code support.

    3, P2P Video server + Wake-up server independently developed, providing global independent server deployment.

    4, APP Independently developed and provided SDK ,and Android & Apple interface source code.



    Operation Video:

    https://v.youku.com/v_show/id_XMzY0NzA2MTk4MA==.html?sharekey=ce5be91c4c1f9e11bc1eb258d02e3c756
